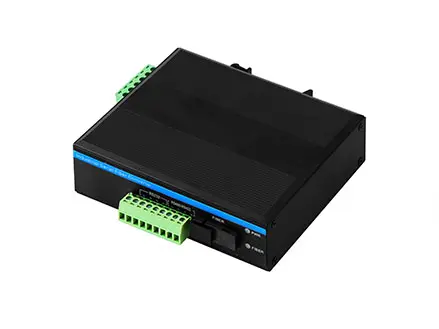

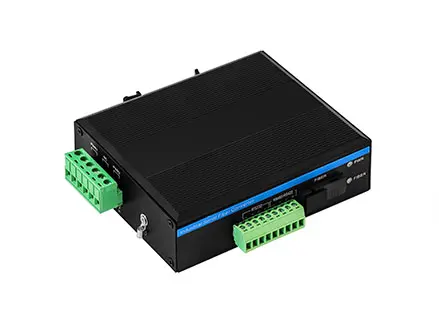

TS-RS232-SM20KM
Réf. RS232-SM20KM
Key Features: 1. Plug-and-play, hot pluggable 2. Extends RS232/RS422/RS485 transmission up to 2Km on MMF, 80Km on SMF 3. Industrial din-rail mounting, IP40 protection grade 4. Protects against electrical interference and chemical corrosion 5. Built-in surge and static protection 6. Diagnostic and unit indicator LEDs 7. Wide temperature range -40 ℃ – +75 ℃ 8. Dual power supply input, 9-52VDC 9. Rai
- Standard: EIA /TIA RS232, RS-422, RS-485
- Fiber Connector: SC standard, ST/FC optional
- Fiber Distance: 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
- Serial Connector: RS-232 ,RS-422, RS-485: phoenix terminal
- Serial Distance: RS-232 port 15m, RS-422, RS-485: 1200 meters
- Rate: 0-120Kbps
- Intrudction
- Product Paramater
