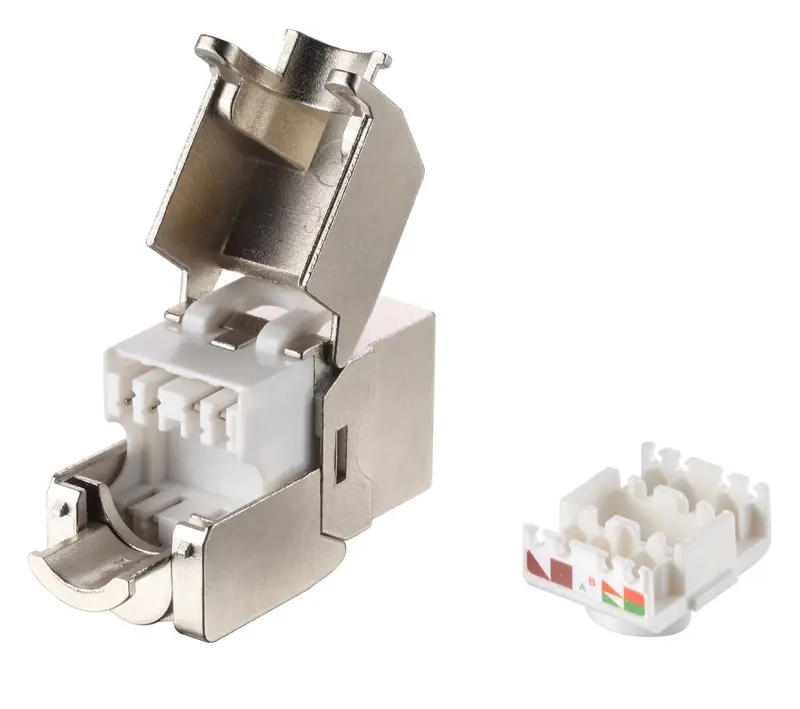

TS-KJFTP6A-SW With Dust Shutter

Réf. KJFTP6A-SW

Available in Cat6A, T568A/B wiring, meet or exceed TIA/EIA Cat6A requirements Shielding protects against EMI/RFI interference Housing: high temperature thermoplastic Compact jack design,8 positions and 8 conductors Contact: phosphor bronze , phosphor bronze with 6 to 50μ gold plate Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm Easy to be terminated, low attenuation loss and high

• Description: Parameter
• Contact resistance(max): 100m ohm
• Insulation resistance(min): 500Mohm
• Return loss(dB): 5.8dB
• Next(dB): 4.7dB
• Ps next(dB): 5.5dB
• Description
• CONSTRUCTION
